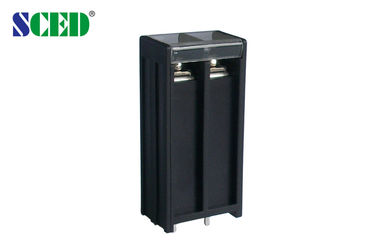

Pitch 10mm Barrier Terminal Block 300V 20A Brass Plastic Black Pitch 10mm Barrier Terminal Block 20A 300V Messing Kunststoff Schwarz
Detailed product Description: Ausführliche Produkt-Beschreibung:
Pitch 10.00mm, 300V 20A, 2P, Barrier Terminal blocks, power terminal block Pitch 10,00 mm, 300 V 20A, 2P, Schwellenanschlussblöcke, Netzklemmenblock
■Right angle wire inlet; ■ Rechtwinkel Drahteinlass; □Vertical wire inlet; □ Vertikale Drahteinlass; □45 degree wire inlet □ 45-Grad-Drahteinlaß
■Single Level; ■ Ebenerdig; □Double levels; □ Doppel Ebenen; □Triple levels □ Dreibettzimmer Ebenen
Standard color: Black. Standardfarbe: Schwarz. Other colors also available. Andere Farben auch verfügbar.
Applications: Anwendungen:
PCB, Frequency Converters, Server Site, Switch, Power Supply, Electric Lighting, Industry Control, Automation, Rail Transportation, Communication, Electric Power, Security, Medicine Equipment, Military, Elevator, etc.. PCB, Frequenzumrichter, Server Site, Schalter, Stromversorgung, elektrische Beleuchtung, Industrie-Steuerung, Automatisierung, Bahntransporte, Kommunikation, Elektrische Energie, Sicherheit, Medizin Ausrüstung, Militär, Aufzug, etc ..
' o / h :"Verdana","sans-serif";mso-bidi-font-family:Verdana'> 'O / h: "Verdana", "sans-serif"; mso-bidi-font-family: Verdana ">
■Right angle wire inlet; ■ Rechtwinkel Drahteinlass; □Vertical wire inlet; □ Vertikale Drahteinlass; □45 degree wire inlet □ 45-Grad-Drahteinlaß
■Single Level; ■ Ebenerdig; □Double levels; □ Doppel Ebenen; □Triple levels □ Dreibettzimmer Ebenen
Standard color: Black. Standardfarbe: Schwarz. Other colors also available. Andere Farben auch verfügbar.
Parameter and Drawing Specifications: Parameter und Zeichnen Spezifikationen:
UL Technical Data UL Technische Daten | B B | C C | D D |
Rated Voltage / Current V/A Rated Spannung / Strom V / A | 300 / 20 300/20 | | 300 / 10 300/10 |
Wire Range AWG Anschlussquerschnitt AWG | 10-18 10-18 | | 10-18 10-18 |
IEC Technical Data IEC Technische Daten | |
Overvoltage Category Überspannungskategorie | Ⅲ Ⅲ | Ⅲ Ⅲ | Ⅱ Ⅱ |
Contamination Class Verschmutzungsgrad | 3 3 | 2 2 | 2 2 |
Rated Voltage / Current V/A Rated Spannung / Strom V / A | 500 / 41 500/41 | 600 / 41 600/41 | 800 / 41 800/41 |
Rated Surge Voltage KV Bemessungsstoßspannung KV | 6 6 | 6 6 | 6 6 |
Rated Connecting Capacity mm 2 Klemmbereich mm 2 | 6 6 |
Material Material | |
Insulation Material / Inflammability Class Isoliermaterial / Brennbarkeitsklasse | PBT / UL94, V-0 PBT / UL 94, V-0 |
Terminal / Plating Klemme / Plating | Brass /Tin Plated Messing / verzinnt |
Screw / Plating Schraube / Plating | Steel / Nickel Plated Stahl / vernickelt |
Other Data Weitere Daten | |
PCB Hole Diameter mm Ø Leiterplattenbohrung mm | φ2.0 φ2.0 |
Stripping Length mm Abisolierlänge mm | 9-10 9-10 |
Screw / Torque / lbf.in Schraube / Drehmoment / lbf.in | M 4 / 10-13 M 4 / 10-13 |
Competitive Advantage: Wettbewerbsvorteil:
- Stable good quality Stabil gute Qualität
- Competitive price Konkurrenzfähiger Preis
- Quickly response Schnell Antwort
- Full range products for selection Umfassendes Angebot Produkte zur Auswahl
- Flexible to design the exact part per customers' demand. Flexible, um die genaue Teil pro Kundennachfrage zu entwerfen.
