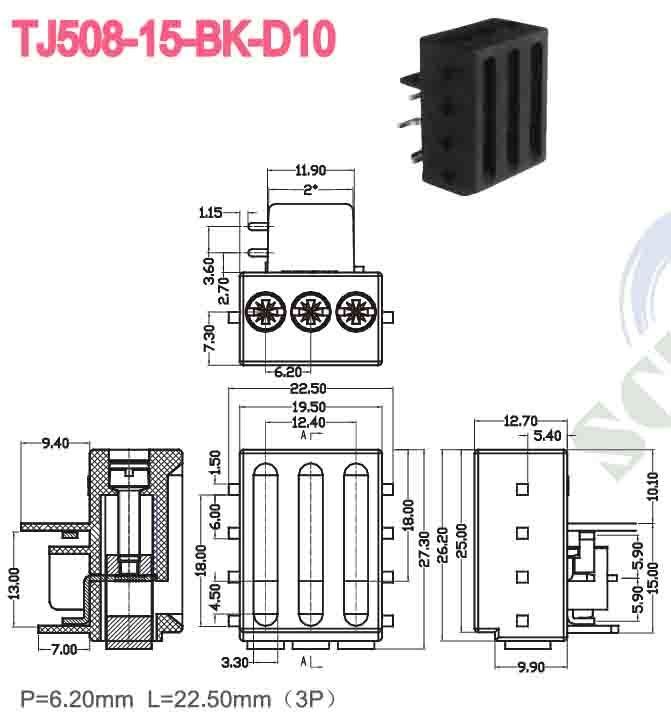

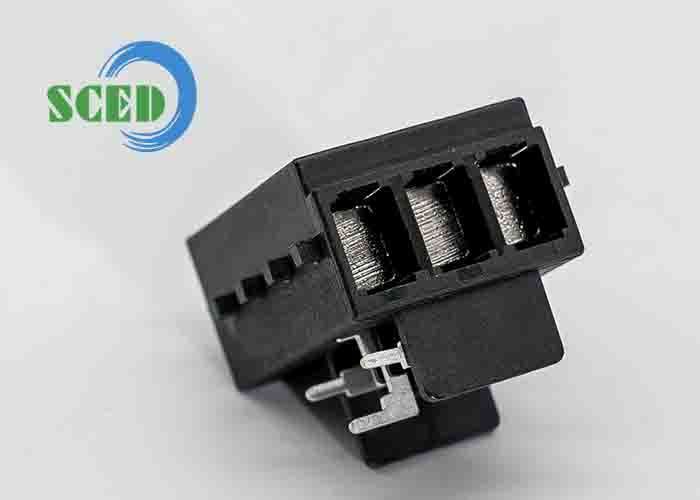

PA66 Material Housing Spring Terminal Block Rated Voltage 300V Inflammability Class V0 Ideal Electrical Connection Solution
-
ÜberzugVernickelt
-
Temperaturbereich-40℃~+105℃
-
Brennbarkeits-KlasseUL94, V-0
-
Anzahl der Kontakte2P-28P
-
GoldbeschichtungVerzinnt
-
KontaktwiderstandKleiner als 8mΩ
-
Nennspannung300V
-
Ebene1 Niveau
-
MarkennameSCED
-
ZertifizierungCE, ISO9001
-
ModellnummerTJ508-15
-
Minimum Order Quantity500
-
PreisGet Latest Price
-
Packaging DetailsCarton Box
-
Delivery Time50 Day(s)
-
ZahlungsbedingungenT/T, Alipay, Paypal
-
Supply Ability100000pcs/day
PA66 Material Housing Spring Terminal Block Rated Voltage 300V Inflammability Class V0 Ideal Electrical Connection Solution
Product Description:
The Spring Terminal Block is a highly reliable and versatile electrical connector designed to provide secure and efficient connections in various electronic and electrical applications. With a current rating of 5A and a rated current capability of up to 10A, this terminal block is engineered to handle moderate electrical loads while ensuring safety and performance. Operating at a rated voltage of 300V, it is suitable for a wide range of low to medium v
